2013-2015 Cadillac ATS 3.6 V6 Overkill Supercharger System

Love your 3.6 model? Ready to leapfrog the 2.0 Turbo modding community? The Overkill Procharger supercharger system is now available for the Cadillac ATS platform! Bolt on significant horsepower in a weekend worth of wrenching.

This kit is for the LFX 3.6, 2013-2015 Cadillac ATS, rear wheel drive and all wheel drive. If you have a 2016-2019 car, you need the LGX 2016-2019 ATS kit instead — the two engines are not interchangeable.

Stage 1 kits will typically increase the factory 260 wheel horsepower (on a chassis dyno) to 350-370 wheel horsepower; Stage 3 kits with the larger D series Procharger and full fuel system upgrades have dynoed around 450 wheel horsepower as provided, with room to grow further.

This system is 100% bolt on installation you can do in a weekend and is completely reversible, unlike turbo systems. You are not required to have any other modifications on your vehicle. Every requirement to install a supercharger on your ATS V6 is included in this kit, including going above the normal expectation with our catch can system to improve engine operation and lifespan, and custom tuning service.

All Kits include the following components and features:

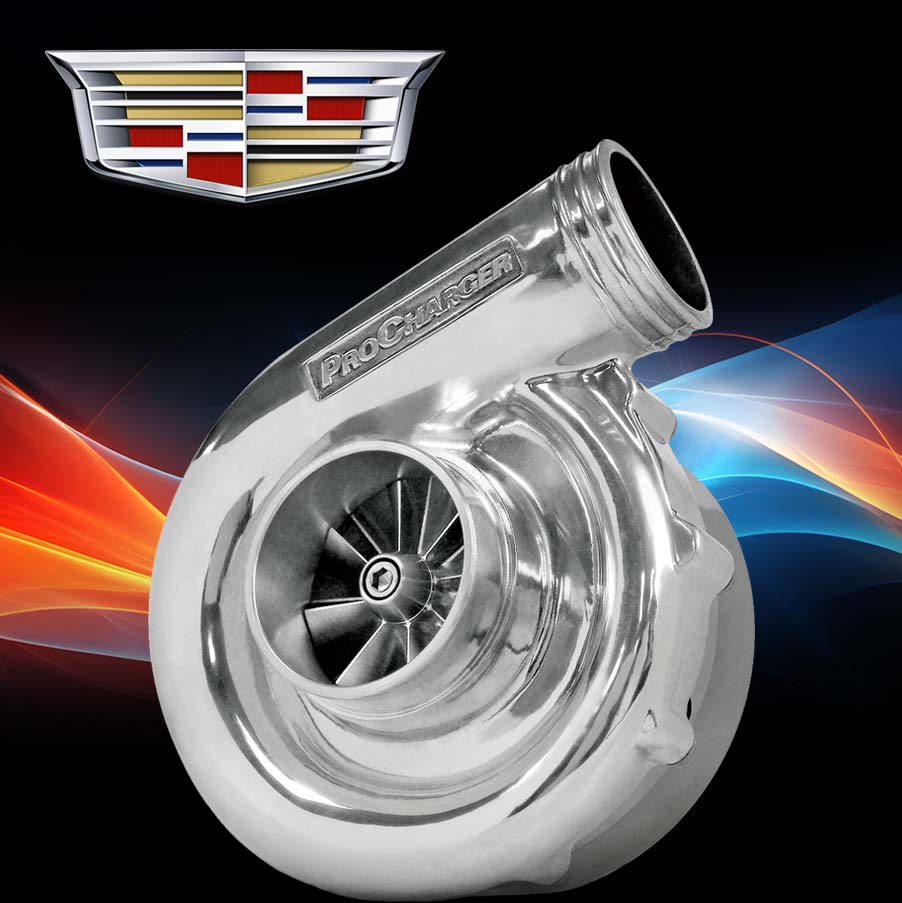

• Procharger Supercharger unit - P1SC model for Stages 1 and 2, D1SC for Stage 3, self contained oiling system (no oil lines connect to the engine), D-Series supports up to 16psi on the 3.6

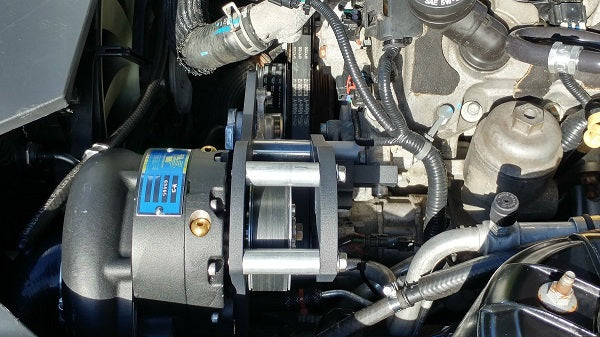

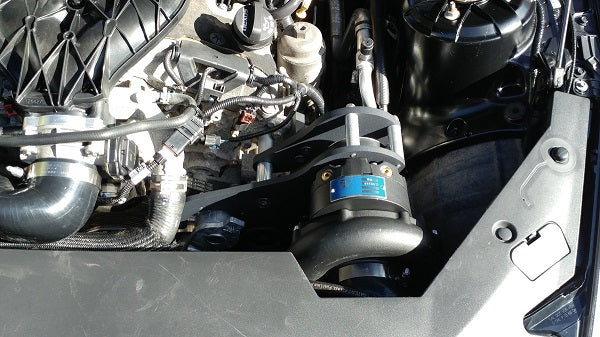

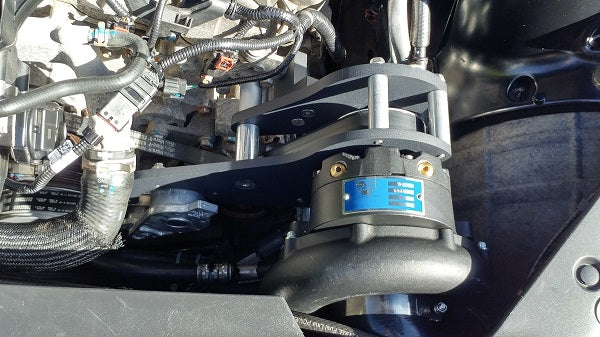

• Overkill 8-rib pulley system - unique mounting brackets use existing engine point attachments to mount the Procharger, a new independent crank pulley interlocks with the factory pulley and runs a dedicated 8-rib belt for the supercharger that doesn't interfere with the factory accessory belt

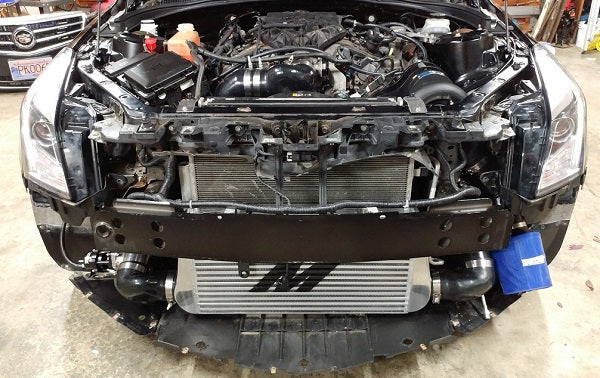

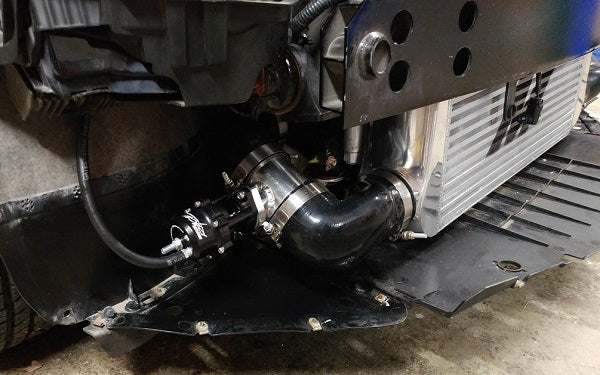

• Full Intercooler system - Large air-air intercooler, Precision blow off valve, custom machined MAF housing and full silicone/aluminum tubing with T-bolt clamps, top quality components.
• Overkill tuning with HP Tuners - each kit comes with an HP Tuner suite and custom tuning support for yourself or the installation/tuning shop of your choice. It's HIGHLY suggested to purchase an AEM 30-0334 air/fuel gauge if you'll be tuning exclusively with Overkill through email.
• Catch can system - separates oil vapors in the PCV system, set up to ensure proper operation while in boost, helps keep oil residue out of the supercharger system and intercooler
• Full Intake system with K&N air filter, new AC Delco spark plugs designed for boost, and a full complement of parts required for installation such as a brake vacuum pump relocation kit, a new serpentine belt and tensioner for the accessory system, new upper radiator brackets and more.

New for September 2020 - Switch to Procharger!

Overkill is excited to announce the switch to Procharger head units for this supercharger system. Along with improved performance for all kits, you can anticipate high horsepower potential from the new Stage 3 kit with a large D-Series Procharger head unit. Read below to understand the difference in Stage kits and what might be right for you!

More on supercharging the 3.6 V6

• Can you supercharge a V6? — what a kit involves, whether prior modifications are needed, and how long the install takes
• How much does it cost to supercharge a V6? — kit pricing plus the costs people forget, like HP Tuners credits
• LLT, LFX or LGX: which kit fits your car — kits are engine-specific, not model-specific
• Supercharger or turbo for a 3.6 V6? — why we build superchargers for these engines

FAQ

Which Cadillac ATS does this kit fit?

This kit fits the LFX 3.6 2013-2015 Cadillac ATS, in both rear wheel drive and all wheel drive. A separate kit is available for the LGX 3.6 2016-2019 models.

How much horsepower does the ATS supercharger system make?

Stage 1 kits typically increase the factory 260 wheel horsepower on a chassis dyno to 350-370 wheel horsepower. Stage 3 kits with the larger D series Procharger and full fuel system upgrades have dynoed around 450 wheel horsepower as provided, with room to grow further.

Is the installation reversible?

Yes. It is a 100% bolt on installation you can do in a weekend and it is completely reversible, unlike turbo systems.

Do I need other modifications first?

No. You are not required to have any other modifications on your vehicle. Every requirement to install a supercharger on your ATS V6 is included in the kit.

Which supercharger unit is included?

A Procharger unit is included: the P1SC model for Stages 1 and 2, and the D1SC for Stage 3. It uses a self contained oiling system with no oil lines connecting to the engine, and the D-Series supports up to 16 psi on the 3.6.

Is tuning included?

Yes. Each kit comes with an HP Tuners suite and custom tuning support for you or the installation and tuning shop of your choice. An AEM 30-0334 air/fuel gauge is highly suggested if you will be tuning exclusively with Overkill through email.

Is a catch can included?

Yes. The catch can system separates oil vapors in the PCV system, is set up to ensure proper operation while in boost, and helps keep oil residue out of the supercharger system and intercooler.

What else comes in the kit?

The kit includes a large air-to-air intercooler, Precision blow off valve, custom machined MAF housing, silicone and aluminum tubing with T-bolt clamps, a full intake system with K&N air filter, new AC Delco spark plugs designed for boost, a brake vacuum pump relocation kit, a new serpentine belt and tensioner, and new upper radiator brackets.
