Blow Off Valve 50mm

Universal 50mm Blow Off Valve w/ Flange and FittingsThe body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98″ (50mm) valve. The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out.

The valve stem and guide are Teflon-lubricated, hard anodized coated for wear resistance.The Blow Off Valve also comes with a new machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life. An aluminum or mild steel weld base mounting flange is furnished with each unit.

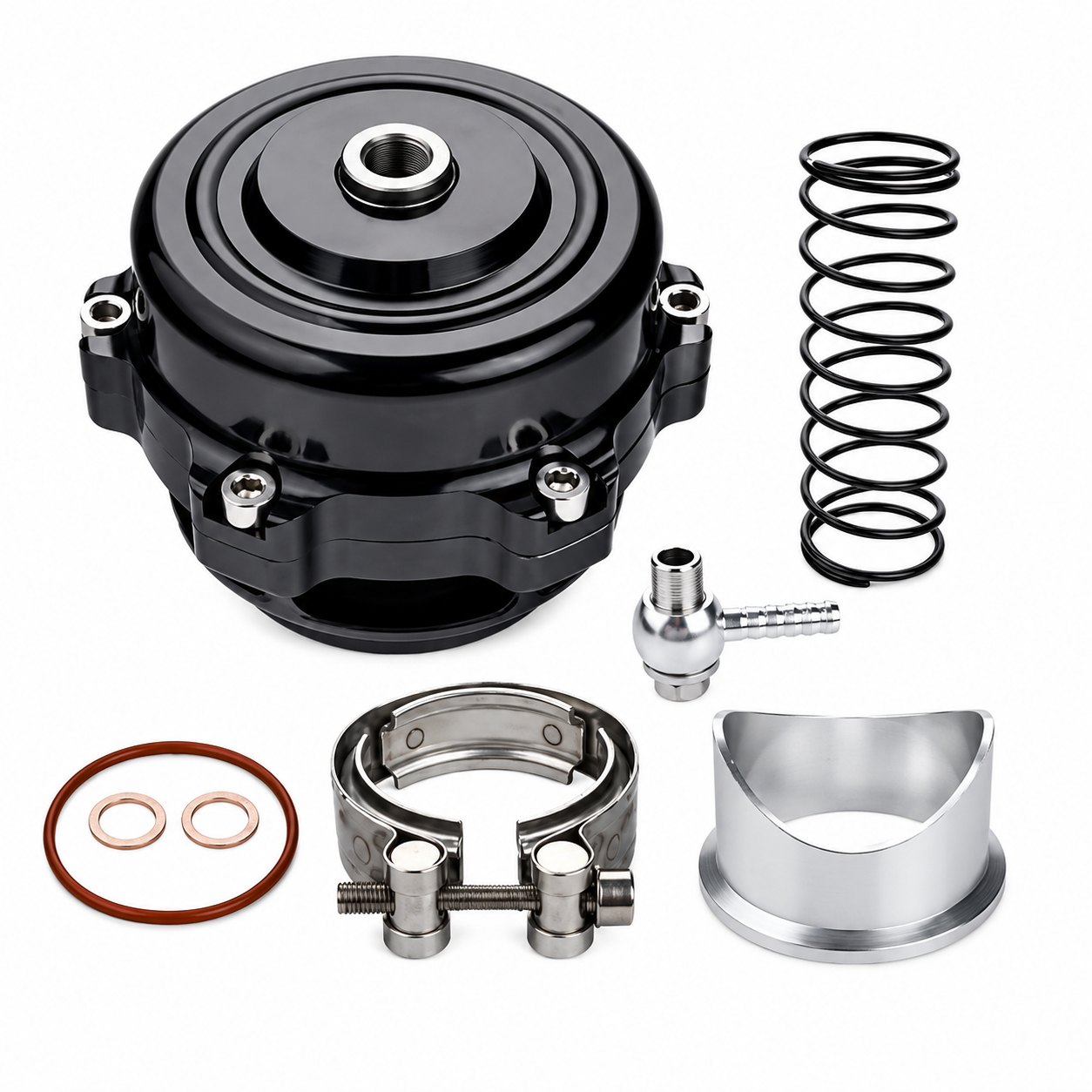

This is the highest flowing BOV on the market. The Kit Includes:

• 50mm Blow Off Valve


• V-band Clamp


• V-band Weld Flange


• High Pressure O-ring


• Air Fitting


• High-Quality Diaphragm and Short Stroke Significantly Increase Response


• Dual Spring System Promoted Response and Allows for High Boost Pressures


• CNC Machined Billet Aluminum Body


• Professional Installation Is Highly Recommended


• Universal Application, Great for all Turbo and Intercooler Upgrade
