TLPP05

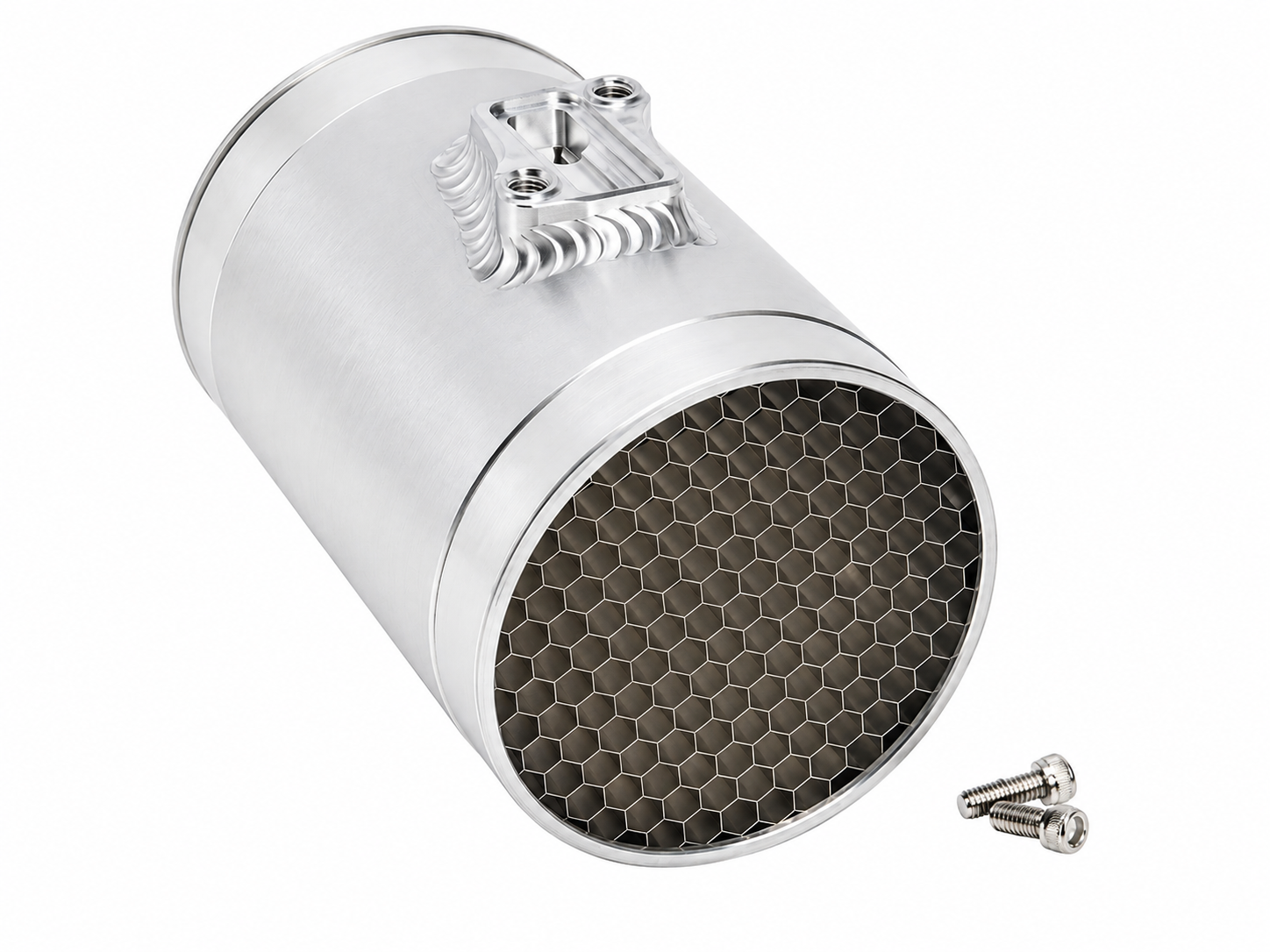

Slot Style MAF Housing



We’re proud to offer more ways to pay. Get what you want in 4 interest-free payments or choose a monthly payment plan when you check out with Shop Pay.
$152.99
Size

Slot Style MAF Housing

  • Use on your cold-air intake, turbo or supercharger project.
  • Precision machined from Billet Aluminum 6061-T6.
  • Precision TIG welds.
  • Air straighteners are aluminum honeycomb open cell, seated and fastened in a precision machined recess on the inlet side for a secure position.
  • Our design makes your silicone hose connection a cleaner transition, with more room for your clamps and a tight fit.
  • Hand-buffed and hand inspected for consistent high quality.
  • Stainless steel hardware for mounting is included.

Designed so that you can reuse your OEM sensor.

Sensor socket bore inside dimensions are 1.39" (35mm) x 0.41" (10mm). Distance between centers of the two mount screws is 1.571" (40mm). This MAF sensor geometry is very common with many cars. If your sensor fits the socket bore dimensions above, it will mount into this MAF housing.

Fitment

Fits the following air flow sensors, which all share the same geometry:

  • OEM 3L3A-12B579-BA (Ford, Lincoln, Mercury)
  • OEM 22680-7S000 / AC Delco 213-3609 (Nissan and Infiniti)
  • AC Delco 213-4222 / OEM 15865791 (Pontiac, Chevrolet, GMC, Hummer, Saturn, Buick, Cobalt, Cadillac, Saab)
  • Also fits the newer GM sensor OEM 20787043 (Buick, Cadillac, Chevrolet, GMC)

FAQ

Can I reuse my factory MAF sensor?

Yes. The housing is designed so that you can reuse your OEM sensor.

Which MAF sensors fit this housing?

It fits OEM 3L3A-12B579-BA for Ford, Lincoln and Mercury; OEM 22680-7S000 and AC Delco 213-3609 for Nissan and Infiniti; AC Delco 213-4222 and OEM 15865791 for Pontiac, Chevrolet, GMC, Hummer, Saturn, Buick, Cobalt, Cadillac and Saab; and the newer GM sensor OEM 20787043 for Buick, Cadillac, Chevrolet and GMC.

How do I check whether my sensor will fit?

The sensor socket bore inside dimensions are 1.39 inches (35mm) by 0.41 inches (10mm), and the distance between the centers of the two mount screws is 1.571 inches (40mm). If your sensor matches those dimensions it will mount into this housing.

What is the housing made from?

It is precision machined from billet aluminum 6061-T6 with precision TIG welds, then hand-buffed and hand inspected.

What does the air straightener do?

The aluminum honeycomb open cell air straightener is seated and fastened in a precision machined recess on the inlet side, holding it securely in position to smooth incoming airflow before it reaches the sensor.

Is mounting hardware included?

Yes. Stainless steel hardware for mounting is included.

What projects is it suitable for?

It is suitable for cold-air intake, turbo or supercharger projects.
