If you own a 2.7L or 3.5L EcoBoost F-150, you already know the engine's appeal: compact displacement, twin turbos, and the kind of torque that makes towing feel effortless. What many owners discover later is that those same turbochargers introduce a complication that naturally aspirated trucks simply do not share — and it has everything to do with where the crankcase ventilation system routes oil vapor under boost. That conversation almost always leads to the topic of an F-150 EcoBoost catch can.
Both the 2.7L and 3.5L EcoBoost engines are turbocharged and rely on gasoline direct injection as their primary — or, in later configurations, their primary-plus-port — fuel delivery method. Because fuel does not spray over the intake valves in a pure direct-injection setup, the intake side of the engine lacks the natural solvent action that port injection provides. At the same time, the PCV system, which is responsible for managing crankcase vapors, routes those vapors back into the intake tract. When those vapors carry oil, the intake plumbing, intercooler, and valves can all become contact points.
Owner forums and Reddit communities have documented oil found in intercooler boots, cold-start misfire codes, and visible deposits on intake-valve teardowns often enough that "F-150 oil catch can" has become a genuine category of aftermarket interest rather than a niche concern. This article explains the mechanism behind those reports — how blow-by works, how the EcoBoost PCV system behaves under boost and vacuum, and what a dual-valve catch-can system is designed to do differently from a basic passive can. It does not promise a specific performance outcome, warranty result, or repair prevention. Understanding the system is the goal.
How Blow-By and the EcoBoost PCV System Send Oil Vapor Into the Intake
Blow-By Begins in the Crankcase
Every internal combustion engine produces some amount of blow-by. During the combustion cycle, high-pressure gases on the combustion side of the piston can pass the piston rings and enter the crankcase below. Those gases do not travel alone — they carry oil vapor, combustion byproducts, and moisture with them. Left unmanaged, blow-by pressure would accumulate in the crankcase, promoting oil contamination and potential seal failure.
The positive crankcase ventilation system — the PCV system — exists specifically to address this. Rather than venting crankcase gases to the atmosphere, as older road-draft systems once did, a PCV system draws those gases back into the intake tract where they can be combusted again. It is a practical emissions and pressure-management solution, but it means that whatever is in the crankcase vapor eventually reaches the intake side of the engine.
PCV Routing Changes Between Vacuum and Boost
A naturally aspirated engine operates with intake-manifold vacuum under most driving conditions, and PCV systems on those engines are designed around that relatively predictable flow. A turbocharged engine like the 2.7L or 3.5L EcoBoost introduces a variable that changes the calculation: boost pressure.
Under light throttle or deceleration, the EcoBoost intake manifold is in vacuum, pulling crankcase vapors through the PCV system in the expected direction. Under boost — when the turbos are pressurizing the intake — that dynamic shifts. The system needs to manage crankcase pressure across both conditions, which is where check-valve design and routing become relevant. A system that functions well under vacuum but does not account for boost operation may not route crankcase vapors the same way across the full range of driving conditions. This is the core reason that turbocharged engines prompt a different conversation about PCV management than naturally aspirated ones.
Why the Intercooler and Intake Tract Become Part of the Conversation
When oil-laden crankcase vapors travel through the intake-side PCV path, they do not always combust cleanly or immediately. As they move through intake plumbing and past the intercooler, oil vapor can condense on cooler surfaces and accumulate over time. Owners discussing EcoBoost PCV oil in intercooler plumbing on F150forum and Reddit threads frequently describe finding oily residue in intercooler boots, charge pipes, and related connections — particularly after higher-mileage use or extended towing.
It is worth stating clearly that these reports represent community observations, not a guaranteed condition affecting every truck. Engine condition, climate, driving patterns, and maintenance history all play a role. But the reports are consistent enough across platforms that they have become a driver of catch-can interest among EcoBoost owners planning long-term ownership.
Direct Injection, Intake Valves, and Carbon Buildup Concerns
Why Direct Injection Changes the Intake-Valve Discussion
Port-injected engines spray fuel across the back of the intake valves on every intake stroke. That fuel acts as a solvent, continuously washing away any oil residue or combustion byproducts that find their way to the valve surface. Direct injection bypasses that process entirely — fuel goes straight into the combustion chamber, and the intake valves never see the cleaning effect of fuel spray.
This distinction matters because whatever enters the intake tract through the PCV system — oil vapor, combustion aerosols, moisture — can contact the intake valve surfaces and contribute to deposits over time. EcoBoost intake valve carbon buildup is a documented discussion topic in F-150 owner communities, with some owners reporting visible deposits when engines are inspected or when intake-side components are removed for other reasons. Walnut blasting, a shop procedure that uses abrasive media to remove intake valve deposits, is sometimes referenced in these conversations, though it is not a universal requirement for every EcoBoost truck.
A catch can is designed to intercept some of that oil vapor before it reaches the intake tract. It is not marketed as a deposit elimination tool or a substitute for intake cleaning that may already be needed. The intent is to reduce how much oil-containing vapor continues downstream.
Port Injection Does Not Remove the Need to Understand PCV Oil Control
Later 3.5L EcoBoost engines and second-generation 2.7L EcoBoost configurations added port injection alongside direct injection. This dual-injection arrangement does introduce fuel washing of the intake valves, which changes the deposit conversation to some degree. However, it does not eliminate the PCV oil-vapor question.
Crankcase vapors continue to be routed through the intake tract regardless of injection configuration. Port injection may reduce the rate at which oil vapor contributes to valve deposits, but it does not intercept oil in the intercooler boots, charge pipes, or intake plumbing upstream of the valves. PCV oil control remains relevant across both generations and both engine displacements because the source of the vapor — the crankcase and the PCV system — is not changed by adding a port injector.
The broader point is that comparing EcoBoost generations is a nuanced exercise. Neither generation is categorically immune to PCV oil management concerns, and the answer for any individual truck depends on its specific configuration, mileage, and use history.
Symptoms Owners Commonly Discuss
Community discussions around EcoBoost oil management tend to cluster around a handful of consistent observations. Cold-start misfire codes, particularly on higher-mileage trucks or during cold weather, appear regularly in forum threads. Owners opening intercooler boots for inspection frequently report finding oily residue. Teardown discussions sometimes show visible buildup on intake-side components.
These reports are attributed to owner experience, not to controlled testing, and similar symptoms can have multiple causes that require proper diagnosis. A misfire code, for example, can result from spark plug condition, coil issues, injector behavior, or other factors entirely unrelated to PCV oil. Identifying a catch can as the solution to an active drivability concern gets the causation backwards — diagnosis first, modifications second.
What a Catch Can Is Designed to Do on a 2.7L or 3.5L EcoBoost
A catch can occupies the PCV path between the crankcase and the intake tract. As vapor passes through, the can is designed to separate oil droplets and aerosols from the airstream, collecting them in a reservoir while allowing the cleaned vapor to continue into the intake. The collected oil accumulates in the can and must be inspected and emptied periodically — the catch can adds a maintenance step rather than removing one.
How much accumulates, and how often the can requires attention, varies considerably. Climate plays a meaningful role: cold temperatures promote condensation inside the can, and owners in cold-weather regions frequently discuss whether line or can freezing is a concern during winter months. Driving patterns matter too — short-trip, low-temperature, or high-boost use will produce different results than steady highway driving in a mild climate. Engine condition, age, and modification level are additional variables. There is no single service interval that applies to every truck in every situation.
2.7 EcoBoost Catch Can Considerations
The 2.7L EcoBoost is a twin-turbocharged engine that has appeared in the F-150 across multiple generations, including both original and updated configurations that introduced port injection alongside direct injection. Owners of 2.7L trucks raise the same PCV oil-vapor questions as their 3.5L counterparts, and community discussions show similar reports of intake-path oil and cold-start concerns.
If you are researching a 2.7 EcoBoost catch can, fitment verification is the first step. Engine bay configurations, hose routing, and available clearances can vary by generation and model year, and the applicable product page at Tracy Lewis Performance is the right place to confirm current fitment and configuration options for your specific truck.
3.5 EcoBoost Catch Can Considerations
The 3.5L EcoBoost has the longest tenure in the F-150 lineup and the widest community discussion around catch-can adoption. Owners using their trucks for towing, those who have tuned for more boost, and those planning high-mileage long-term ownership are particularly active in these conversations. Community threads on 3.5L trucks commonly include references to intercooler oil accumulation and cold-start behavior, especially in the 2015–2020 first-generation 3.5L category, though later configurations are discussed as well.
Do I need a catch can on my EcoBoost? The 3.5L context is where that question appears most frequently. For owners who tow regularly, drive in varied conditions, or simply want to manage what reaches the intake tract over the long run, PCV oil control is a meaningful consideration. Whether a catch can is the right modification depends on your ownership goals — the section below on dual-valve system design explains what to evaluate.
Dual-Valve Full-Time Vacuum vs. a Passive Catch Can
The Limitation of a Basic Passive Can
The catch-can market spans a wide range of designs, from simple baffled reservoirs to more sophisticated systems with multiple valves and separators. At the simpler end of the spectrum, a passive can provides a collection point in the PCV line but does not actively manage how vapor is routed as engine conditions change. For a turbocharged engine that transitions between intake vacuum and boost throughout a typical drive, that distinction matters.
Under vacuum, vapor flows toward the can without much resistance. Under boost, the pressure dynamics shift, and a system without appropriate check-valve management may not route vapor as effectively — or may allow boost pressure to interact with the catch-can plumbing in unintended ways. None of this is a blanket indictment of every simpler design; the relevant question for an EcoBoost owner is specifically whether the system handles both operating conditions by design.
How the Tracy Lewis Dual-Valve Approach Is Positioned

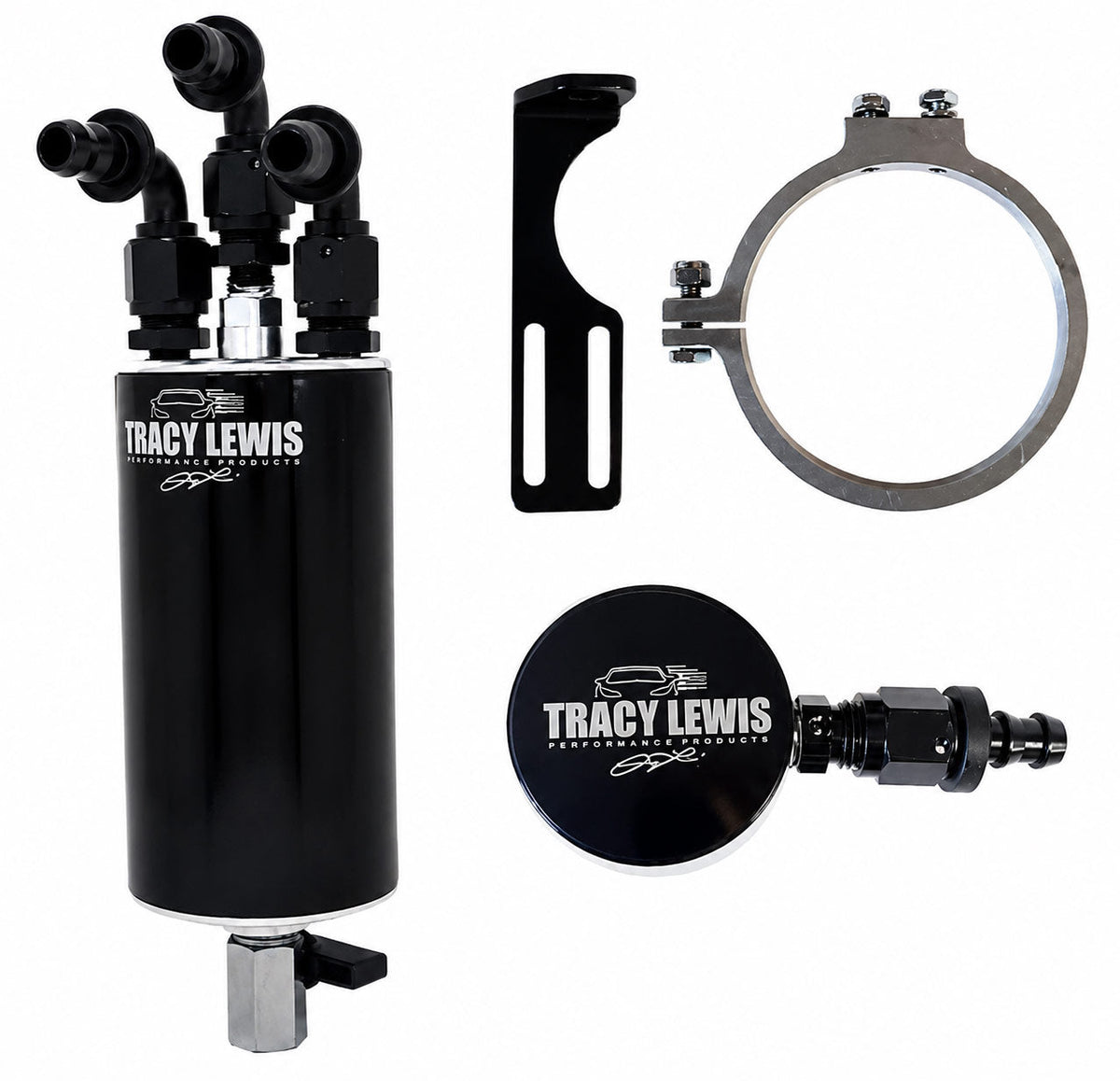

The Tracy Lewis F-150 catch-can offering is built to order and positioned as a dual-valve, full-time-vacuum system. It includes a Clean Side Separator and is available with multiple hose and check-valve configuration options, as documented on the product page. The functional intent of the dual-valve design is to maintain crankcase evacuation across both vacuum and boost operating conditions, rather than relying on a passive collection approach that may only function predictably under one set of conditions.
For owners evaluating what to look for when comparing the best catch can for an F-150, the dual-valve and full-time-vacuum distinction is worth understanding. A system designed to actively manage PCV flow under changing boost conditions addresses the turbocharged EcoBoost's operating range in a way that a basic baffled reservoir does not. Current options, pricing, and fitment details for the Ford F-150 Tracy Lewis Catch Can are available on the Tracy Lewis Performance product page.
Choosing Options for Higher-Demand Use
The Tracy Lewis F-150 catch-can system is available in configurations that include a Monster can option, a high-performance check valve, and hose options including premium grades. These are configuration decisions rather than required upgrades for every installation. Owners running higher boost levels, those who tow frequently at capacity, or those operating in conditions that promote higher vapor volume may find the Monster can or high-performance check valve relevant to their situation. For owners with more typical daily-driving use, the standard configuration is the starting point.
The product page is the appropriate reference for current configuration availability and any fitment details specific to your truck. Do not rely on forum posts or third-party descriptions for specifications — configurations can change, and the source of record is the product page itself.
EcoBoost Catch Can Install and Ongoing Maintenance
Before Starting Installation
Before ordering or beginning an EcoBoost catch can install, confirm that the product you are ordering is specified for your engine application and model year. The 2.7L and 3.5L are distinct engines with different bay configurations, and within each displacement there are generational differences that affect routing and fitment. The Tracy Lewis Performance product page for the F-150 application is the place to verify this before purchase.
Once the correct system is confirmed and received, the installation process should follow the Tracy Lewis catch can installation instructions for your specific application. Some F-150 owners have reported completing installation in roughly an hour, though actual time will vary depending on familiarity with the engine bay, tools on hand, and the specific configuration being installed. No particular installation time should be treated as a promise. Do not improvise routing or modify hose connections outside of what the instructions specify.
Inspecting and Emptying the Catch Can
Catch-can maintenance is ongoing. The reservoir collects what the system separates from the PCV vapor stream, and that material needs to be inspected and emptied according to your operating conditions and the guidance in the applicable installation instructions. There is no universal service interval that fits every climate, driving style, and engine condition.
Owners in cold climates should be aware that condensation is a genuine factor. When crankcase vapor is cold or when ambient temperatures drop significantly, moisture can condense inside the can or lines. Community discussions around winter use frequently address whether accumulated condensation presents a freezing risk. Inspecting the can more frequently during cold-weather months, or after conditions that promote condensation, is a reasonable approach — but the specifics should be guided by the product instructions and your own observations rather than a fixed calendar schedule.
Warranty and Diagnosis Considerations
Warranty concern is one of the most common questions attached to any aftermarket installation on a truck still covered under a manufacturer warranty. Whether installing a catch can affects your Ford warranty is not a question this article can answer, and it would be irresponsible to speculate. Review your applicable warranty terms carefully and consult your dealer or a qualified professional if you have specific concerns before installing any aftermarket component.
Equally important: a catch can is not a diagnostic tool. If your truck currently has active misfire codes, drivability concerns, or other issues, address those through appropriate diagnosis before considering what modifications may serve your long-term ownership goals. Installing a catch can on a truck with an existing problem does not resolve the problem.
Is a Catch Can a Good Fit for Your F-150 EcoBoost?
The owners most likely to find this article useful share a few common characteristics. They are planning to keep their truck for the long term and want to understand what is happening inside the intake tract over time. They tow regularly and wonder whether the combination of boost and heat cycles accelerates PCV oil accumulation. They have read forum threads about intercooler oil or cold-start misfires and want to understand the mechanism rather than just react to anecdotes. Or they are tuned and running more boost than stock, which puts a finer point on crankcase pressure management.
A well-designed F-150 EcoBoost catch can is built to intercept oil-containing vapor in the PCV path before it reaches the intake tract, intercooler, and valves. It will add a maintenance task to your ownership routine, and its benefit will depend on your engine's condition, your driving patterns, and how consistently you maintain the system. It is not a guaranteed solution to carbon buildup, a repair for an existing misfire, or a warranty preservation device. It is a considered modification for owners who understand the EcoBoost PCV system and want to manage what travels through it.
If that describes your ownership goals, the Ford F-150 Tracy Lewis Catch Can product page is the place to review current fitment, configuration options, and ordering information for your 2.7L or 3.5L application.
Owners researching the intake side of their EcoBoost more broadly may also find the Ford Ported Throttle Body for 2.7L/3.5L EcoBoost trucks relevant as a complementary intake-side modification — though it addresses airflow at the throttle body rather than PCV oil management, and the two serve distinct functions.
For the bigger picture on crankcase ventilation, see the Oil Catch Can Guide and What Is an Oil Catch Can and How Does It Work?
F-150 EcoBoost Catch Can FAQs
Do I need a catch can on my EcoBoost?
No catch can manufacturer or third-party article can answer that question universally for every owner. Whether a catch can makes sense for your F-150 EcoBoost depends on your ownership goals, how long you plan to keep the truck, how you drive it, and what you already know about its intake and PCV condition. A catch can is designed to manage oil vapor in the PCV path — it is a preventative modification, not a repair. Owners who prioritize long-term intake cleanliness, who tow frequently, or who are running a tune that adds boost are the most common audience for this type of modification. If your truck has an active drivability concern, diagnose that first.
Is there a difference between a 2.7 EcoBoost catch can and a 3.5 EcoBoost catch can?
The 2.7L and 3.5L EcoBoost are different engines with different physical layouts, which means fitment and hose routing differ between applications. Community discussions suggest both engines experience PCV oil-vapor concerns, though the specifics of volume and accumulation vary and should not be treated as a fixed comparison. Before purchasing, confirm that the system you are ordering is specified for your exact engine and model year. The applicable product page is the correct reference for fitment — do not assume that a system listed for one displacement is interchangeable with the other.
Can PCV oil collect in an F-150 EcoBoost intercooler?
The mechanism exists for it to happen. Oil-laden crankcase vapors traveling through the PCV system can condense on cooler surfaces in the intake tract, including intercooler-adjacent components and charge piping. F-150 owner forums and Reddit communities have documented reports of oily residue found in intercooler boots and related plumbing, particularly on higher-mileage trucks and after extended towing use. These are community-reported observations, not a guaranteed condition for every truck. If you find oil in your intercooler plumbing, that observation warrants investigation and should not be attributed to PCV as the only possible cause without proper diagnosis.
How often should I empty an F-150 oil catch can?
There is no single correct interval that applies to every truck in every situation. How much a catch can collects depends on your climate, engine condition, driving patterns, whether you tow or run boost frequently, and how the system is plumbed. Cold climates introduce condensation as an additional variable, and owners in those regions often inspect and empty the can more frequently during winter months. The best approach is to follow the guidance in your applicable installation instructions, inspect the can at regular intervals, and adjust your routine based on what you observe accumulating.
Does installing a catch can void a Ford warranty?
This article cannot and does not provide a legal or warranty conclusion on that question. Warranty terms and their application to aftermarket modifications are specific to the coverage in effect, the component in question, and the circumstances of any potential claim. Review your applicable warranty documentation carefully and consult your Ford dealer or a qualified professional before installing any aftermarket modification if warranty coverage is a concern for your situation.
